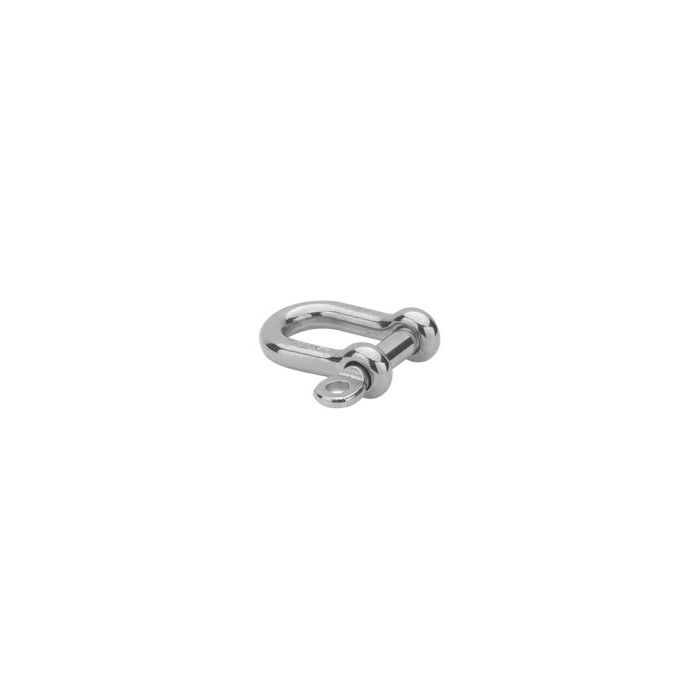

NIRO Schäkel, gerade Form - 1.4401 / AISI316 / Edelstahl A4
| Artikelnummer | Nenngröße | Bruchlast* in kg | d1 mm | d2 mm | d3 mm | b1 mm | h1 mm |
|---|---|---|---|---|---|---|---|
| 3011293 | 5 | 1200 | 5,0 | 5,0 | 10,0 | 10,0 | 17,0 |
| 3011294 | 6 | 1500 | 6,0 | 6,0 | 12,0 | 12,0 | 21,0 |
| 3011297 | 8 | 2500 | 8,0 | 8,0 | 16,0 | 16,0 | 28,0 |
| 3011302 | 10 | 4500 | 10,0 | 10,0 | 19,0 | 19,0 | 35,0 |
| 3011305 | 12 | 6000 | 11,0 | 12,0 | 24,0 | 23,0 | 41,0 |
| 3011308 | 13 | 7000 | 13,0 | 13,0 | 26,0 | 26,0 | 45,0 |
| 3011309 | 16 | 8000 | 15,0 | 16,0 | 32,0 | 31,0 | 55,0 |
| 3011310 | 19 | 12000 | 18,0 | 19,0 | 38,0 | 38,0 | 66,0 |
| 3011311 | 22 | 15000 | 21,0 | 22,0 | 44,0 | 45,0 | 76,0 |
| 3011312 | 25 | 18000 | 24,0 | 25,0 | 50,0 | 50,0 | 87,0 |
* Bitte Bruchlast nicht mit der Tragfähigkeit verwechseln.
Die Bolzen unserer NIRO Schäkel sind mit metrischem Gewinde versehen.
| Lieferzeit | 2-3 Tage |
|---|---|
| Is on Sale | Nein |
