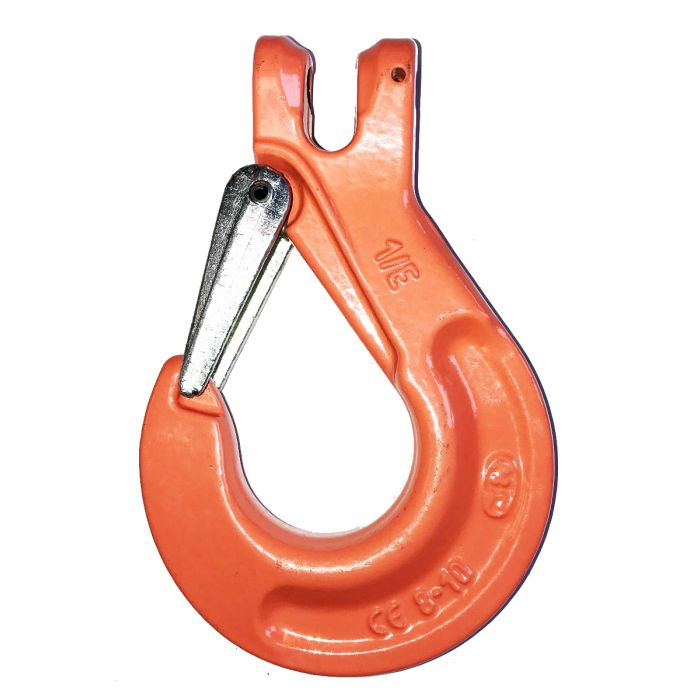

Gabelkopfhaken CARTEC 100 CBX
Artikelnummer | Bezeichnung | Tragfähigkeit kg | passend für Ketten-ø | A mm | A1 mm | B mm | C mm | G mm | H mm | R mm | PxL mm | Gewicht kg |
---|---|---|---|---|---|---|---|---|---|---|---|---|
1170259 | CBX06SF | 1400 | 6-10 | 26 | 19 | 7 | 8 | 15 | 20 | 69 | 7,5x17,5 | 0,25 |
1170260 | CBX07SF | 1900 | 7-10 | 34 | 26 | 10 | 10 | 19 | 28 | 95 | 9,0x22,5 | 0,55 |
1170261 | CBX08SF | 2500 | 8-10 | 34 | 26 | 10 | 10 | 19 | 28 | 95 | 10,0x22,5 | 0,50 |
1170262 | CBX10SF | 4000 | 10-10 | 40 | 31 | 12 | 14 | 25 | 33 | 110 | 13,0x29,5 | 1,00 |
1170263 | CBX13SF | 6700 | 13-10 | 51 | 40 | 15 | 17 | 30 | 40 | 136 | 16,0x37,0 | 1,70 |
1170318 | CBX16SF | 10000 | 16-10 | 56 | 45 | 18 | 22 | 37 | 48 | 155 | 20,0x52,0 | 3,20 |
1170307 | CBX20SF | 16000 | 20-10 | 60 | 53 | 23 | 25 | 51 | 52 | 185 | 24,0x73,0 | 5,00 |
1170378 | CBX22SF | 19000 | 20-10 | 70 | 62 | 25 | 29 | 50 | 63 | 210 | / | 12,30 |
