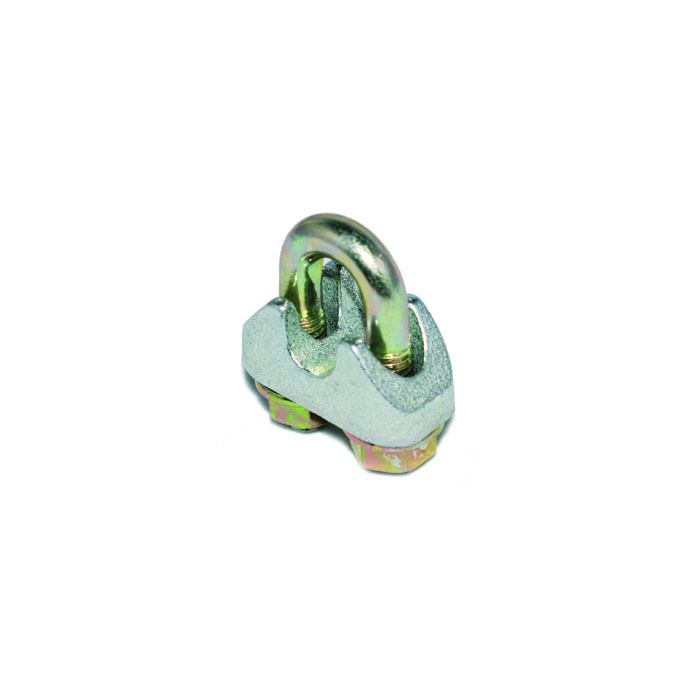

Drahtseilklemme EN 13411-5-1
| Artikelnummer | Nenngröße = max. Seil-ø mm | a mm | b1 mm | b2 mm | d | h1 mm | h2 mm | l mm | Gewicht kg | Mindestabnahme Stück |
|---|---|---|---|---|---|---|---|---|---|---|
| 1060127 | 5,0 | 13 | 7 | 13 | M 5 | 25 | 13 | 25 | 0,021 | 20 |
| 1060128 | 6,5 | 17 | 8 | 16 | M 6 | 32 | 14 | 30 | 0,040 | 20 |
| 1060129 | 8,0 | 20 | 10 | 20 | M 8 | 41 | 18 | 39 | 0,082 | 10 |
| 1060130 | 10,0 | 24 | 12 | 20 | M 8 | 46 | 21 | 40 | 0,092 | 10 |
| 1060131 | 12,0 | 28 | 12,5 | 24 | M 10 | 56 | 25 | 50 | 0,173 | 5 |
| 1060132 | * 13,0 | 30 | 15 | 28 | M 12 | 64 | 29 | 55 | 0,275 | 5 |
| 1060133 | 14,0 | 31 | 14 | 32 | M 12 | 66 | 30 | 59 | 0,276 | 5 |
| 1060134 | 16,0 | 35 | 18 | 32 | M 14 | 76 | 35 | 64 | 0,430 | 4 |
| 1060135 | 19,0 | 36 | 22 | 32 | M 14 | 83 | 40 | 68 | 0,490 | 4 |
| 1060136 | 22,0 | 40 | 24 | 34 | M 16 | 96 | 44 | 74 | 0,680 | 4 |
| 1060137 | 26,0 | 50 | 26 | 38 | M 20 | 118 | 51 | 84 | 1,170 | 1 |
| 1060138 | 30,0 | 55 | 34 | 41 | M 20 | 131 | 59 | 95 | 1,400 | 1 |
| 1060139 | 34,0 | 60 | 38 | 45 | M 22 | 150 | 67 | 105 | 2,130 | 1 |
| 1060140 | 40,0 | 65 | 44 | 49 | M 24 | 167 | 77 | 117 | 2,168 | 1 |
- verzinkt
- * NG 13 außer Norm
| Lieferzeit | 2-3 Tage |
|---|---|
