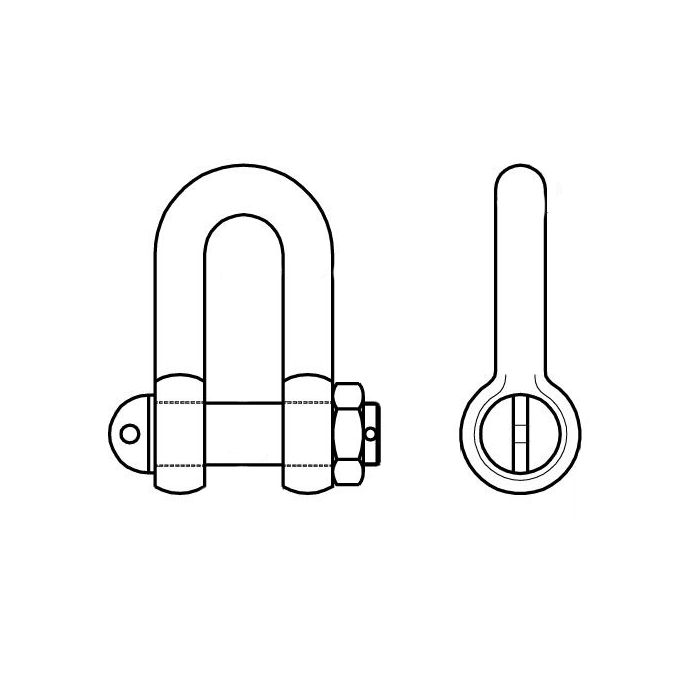

Schäkel ähnlich DIN 82101, Form C
|
Artikelnummer |
Nenngröße |
Tragfähigkeit in kg |
d1 mm |
d2 mm |
d3 mm |
d4 mm |
d5 mm |
b mm |
h mm |
Gewicht kg |
|
1070050
|
0,40 |
400 |
8 |
10 |
20 |
M 10 |
10 |
14 |
30,0 |
0,10 |
|
1070051
|
0,60 |
630 |
10 |
12 |
24 |
M 12 |
12 |
17 |
36,0 |
0,20 |
|
1070052
|
1,00 |
1000 |
13 |
16 |
32 |
M 16 |
15 |
21 |
49,0 |
0,40 |
|
1070053
|
1,60 |
1600 |
17 |
20 |
40 |
M 20 |
19 |
27 |
61,0 |
0,80 |
|
1070054
|
2,00 |
2000 |
19 |
22 |
44 |
M 22 |
21 |
30 |
67,0 |
1,10 |
|
1070055
|
2,50 |
2500 |
21 |
24 |
48 |
M 24 |
23 |
33 |
73,0 |
1,40 |
|
1070056
|
3,00 |
3150 |
24 |
27 |
54 |
M 27 |
26 |
38 |
83,5 |
2,00 |
|
1070057
|
4,00 |
4000 |
27 |
30 |
60 |
M 30 |
29 |
42 |
91,0 |
2,70 |
|
1070058
|
5,00 |
5000 |
30 |
36 |
72 |
M 36 |
33 |
47 |
111,0 |
4,30 |
|
1070059
|
6,00 |
6300 |
34 |
39 |
78 |
M 39 |
37 |
53 |
119,5 |
5,80 |
|
1070060
|
8,00 |
8000 |
38 |
45 |
90 |
M 45 |
41 |
60 |
139,5 |
8,50 |
|
1070061
|
10,00 |
10000 |
42 |
48 |
96 |
M 48 |
45 |
66 |
147,0 |
10,80 |
|
1070062
|
12,00 |
12500 |
47 |
52 |
104 |
M 52 |
50 |
73 |
158,0 |
14,40 |
|
1070063
|
16,00 |
16000 |
52 |
60 |
120 |
M 60 |
55 |
81 |
185,0 |
20,50 |
|
1070064
|
20,00 |
20000 |
58 |
68 |
136 |
M 68 |
61 |
90 |
211,0 |
29,50 |
|
1070065
|
25,00 |
25000 |
63 |
72 |
144 |
M 72 |
67 |
100 |
221,0 |
36,00 |
|
1070066
|
32,00 |
31500 |
70 |
80 |
160 |
M 80 |
74 |
110 |
246,0 |
49,50 |
- Form C mit Bolzen, Mutter und Splint
- verzinkt
