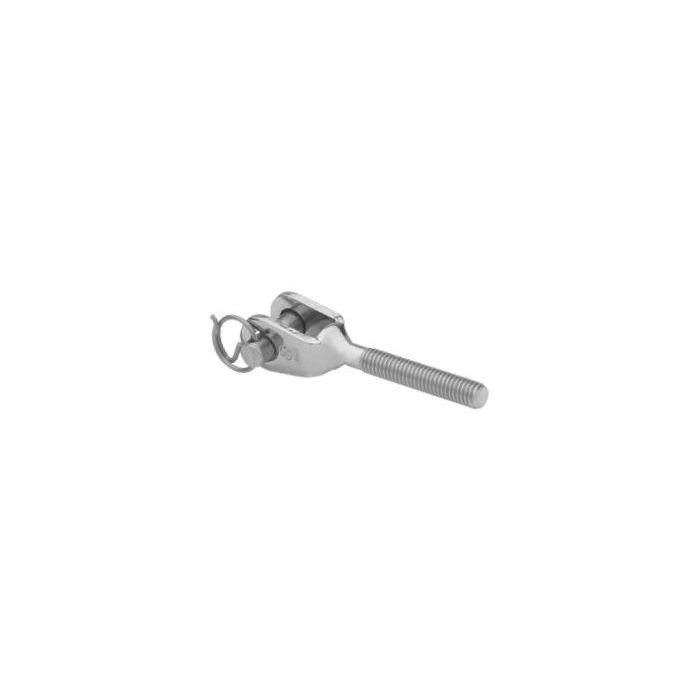

ASS Mini-Gewindegabel - 1.4401 / AISI316 / Edelstahl A4
| Artikelnummer | d1 mm | Gewindeausführung | L1 mm | L3 mm | h mm | s mm | b mm | f mm |
|---|---|---|---|---|---|---|---|---|
| 3010507 | M 4 | Rechtsgewinde | 40 | 20 | 9,0 | 7,0 | 5,0 | 12,0 |
| 3010506 | M 4 | Linksgewinde | 40 | 20 | 9,0 | 7,0 | 5,0 | 12,0 |
| 3010509 | M 5 | Rechtsgewinde | 45 | 25 | 9,0 | 7,0 | 5,0 | 12,0 |
| 3010508 | M 5 | Linksgewinde | 45 | 25 | 9,0 | 7,0 | 5,0 | 12,0 |
| 3010511 | M 6 | Rechtsgewinde | 52 | 30 | 8,0 | 8,0 | 6,0 | 13,0 |
| 3010510 | M 6 | Linksgewinde | 52 | 30 | 8,0 | 8,0 | 6,0 | 13,0 |
| 3010513 | M 8 | Rechtsgewinde | 57 | 30 | 11,0 | 11,0 | 8,0 | 17,0 |
| 3010512 | M 8 | Linksgewinde | 57 | 30 | 11,0 | 11,0 | 8,0 | 17,0 |
| 3010515 | M10 | Rechtsgewinde | 77 | 40 | 13,0 | 12,0 | 9,0 | 20,0 |
| 3010514 | M10 | Linksgewinde | 77 | 40 | 13,0 | 12,0 | 9,0 | 20,0 |
| Lieferzeit | 2-3 Tage |
|---|---|
| Is on Sale | Nein |
